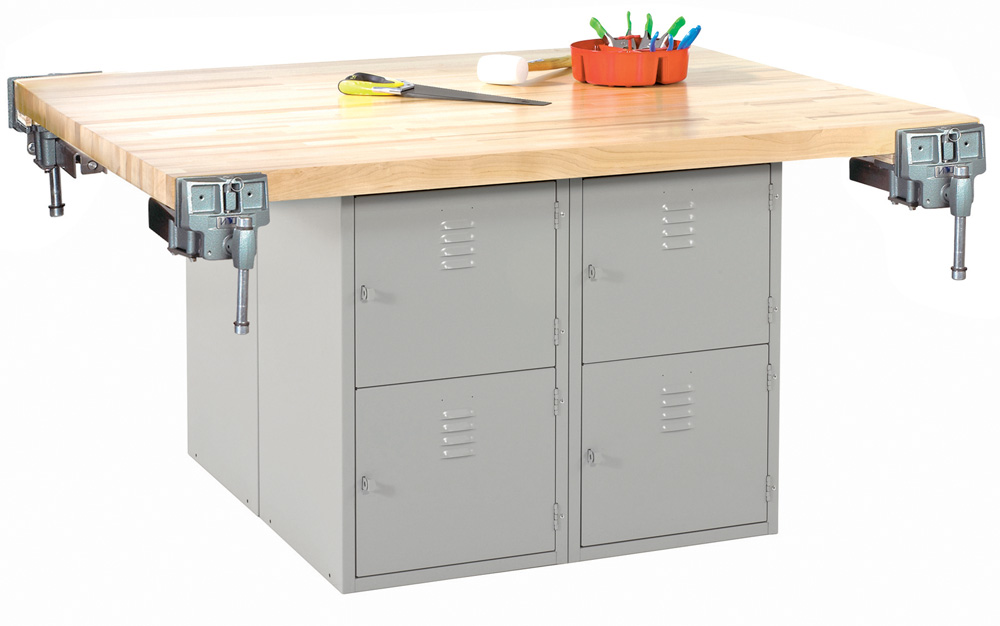

WB4-4V

4-Station Workbench With Vises

Base consists of a double-faced heavy gauge steel unit, welded and riveted throughout. The unit provides 8 horizontal locker openings which measure 18"W x 21"D x 15"H. Vented doors have spring loaded hinges, padlock hasp. Top is constructed of 2-1/4" maple. Available with or without four vises. Available in either gray or black base units. Overall size: 64"W x 54"D x 33-1/4"H.

WB4-4V

4-Station Workbench With Vises

Features

  • 18-gauge Steel locker doors have air vents, spring hinges, padlock hasp & knockout plug for cylinder lock
  • 2-1/4" Thick maple top
  • 20-gauge steel, all-welded, one-section construction with reinforced side panels
  • 4 Vises are included
  • 64"W x 54"D x 33-1/4"H
  • Diversified Woodcrafts Inc. is SEFA compliant and MAS Certified Green
  • Eight horizontal lockers with openings measuring 18"W x 21"D x 15"H
  • Limited Lifetime Warranty
  • Made in the USA
  • Steel lockers with gray baked enamel finish

Material

Metal

WB4-4V

4-Station Workbench With Vises

Number on Pallet * 4
Number of Pallets * N/A
Ship Width * 66
Ship Depth * 56
Ship Height * 39.25
Item Weight * 565
Total Ship Weight * 617
Freight Class 125
(*ESTIMATED)
Top/Surface
Maple
Material
Metal
CAD Block
WB4-0V.dwg
PDF
ButcherBlock_Care_SS.pdf WB4-0V-Model.pdf
Assembly Instructions
WB SERIES-AI.pdf
